VMXT
3-way
- Valves with 5.5 mm stroke.
- For electro-mechanical actuators.
- Faster opening/closing times.
- Higher close-off.
- Better modulating control.
- 3-position control also available

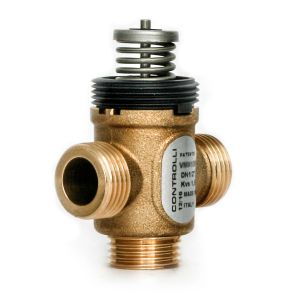

VMXT series valves are used for hot and chilled water control in two- or four-pipe fan coil units, zone plants, solar plants, small re-heaters and dehumidifiers, in electric/electronic temperature control systems. They are motorized by MVT.03S and MVC503R actuators.
-
VMXT09 DN15 Kvs=0,25
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=0,25 and external threaded connections with conical stop
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT09P DN15 Kvs=0,25
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=0,25 and flat tapped external threaded ends
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT1 DN15 Kvs=2
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=2 and external threaded connections with conical stop
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT10 DN15 Kvs=0,4
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=0,4 and external threaded connections with conical stop
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT10P DN15 Kvs=0,4
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=0,4 and plain tapped external threaded connections
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT11 DN15 Kvs=0,6
Get a QuoteZone valve for 3-way PN16 fan coil units
DN15, Kvs=0.6 and external threaded connections with tapered stop
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT11P DN15 Kvs=0,6
Get a QuoteZone valve for 3-way PN16 fan coil units
DN15, Kvs=0,6 and external flat-head threaded connections
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT12 DN15 Kvs=1
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=1 and external threaded connections with tapered stop
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT12P DN15 Kvs=1
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=1 and flat tapped external threaded ends
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT13 DN15 Kvs=1,6
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=1.6 and external threaded connections with conical stop
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT13P DN15 Kvs=1,6
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=1.6 and flat tapped external threaded ends
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT1P DN15 Kvs=2
Get a QuoteZone valve for PN16 3-way fan coils
DN15, Kvs=2 and flat tapped external threaded ends
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT21 DN20 Kvs=2,5
Get a QuoteZone valve for PN16 3-way fan coils
DN20, Kvs=2,5 and external threaded connections with conical stop
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT21P DN20 Kvs=2,5
Get a QuoteZone valve for PN16 3-way fan coils
DN20, Kvs=2,5 and flat tapped external threaded ends
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT24P DN20 Kvs=4
Get a QuoteZone valve for PN16 3-way fan coils
DN20, Kvs=4 and flat tapped external threaded ends
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock -
VMXT26P DN20 Kvs=6
Get a QuoteZone valve for PN16 3-way fan coils
DN20, Kvs=6 and flat tapped external threaded ends
Brass body and technopolymer plug
Fluid temperature 5/95 °C Learn MoreIn stock
